How to Measure a Car Seat Belt Buckle for Replacement

Get the Right Fit for Your Vehicle’s Safety System

When replacing a seat belt buckle, it’s essential to get the correct size and type for your vehicle. The wrong fit could lead to safety issues, MOT failure, or a frustrating installation process.

Whether you’re replacing a damaged buckle or upgrading your car’s safety system, taking accurate measurements will help you choose the right part the first time.

In this guide, we’ll walk you through how to measure a seat belt buckle correctly, what key dimensions to note, and some common terms to know before you shop.

Why Buckle Size Matters

Not all seat belt buckles are the same. There are variations in the buckle length, mounting style, and tongue compatibility. These differences can affect whether the new buckle locks in properly and aligns safely in your car’s seat configuration.

For best results, it’s always a good idea to measure your existing seat belt buckle before ordering a replacement.

Tools You’ll Need

• Tape measure or ruler (preferably in millimetres)
• A torch (for hard-to-reach places)
• Your current seat belt buckle (still attached or removed)

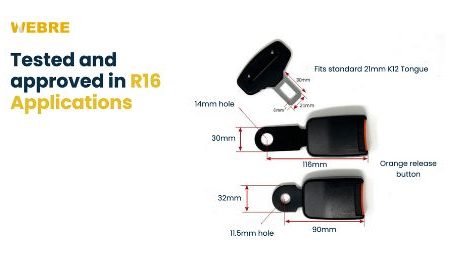

1. Measure the Buckle Blade or Stalk Length

The first measurement to take is the blade or stalk length, which is the length from the mounting bolt or base to the buckle housing (where the seat belt clicks in).

How to measure it:

• If the buckle is on a fabric strap, measure from the bolt hole at the base to the start of the plastic buckle casing.
• If it’s a rigid stalk (also called a “fixed” buckle), measure from the mounting point to the top of the buckle button.

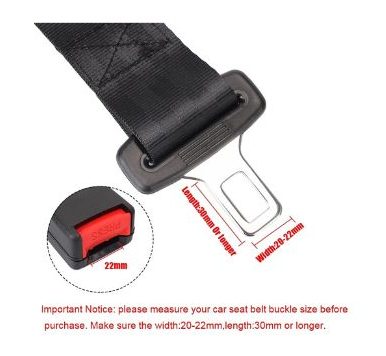

2. Measure the Buckle Slot (Tongue Width)

Next, measure the slot where the seat belt tongue inserts. This is vital to ensure your seat belt latch plate fits and locks securely.

How to measure it:

• Measure the internal width of the buckle’s slot (usually in mm).
• Most modern seat belts use a 22mm tongue, but some older or OEM systems vary (e.g., 21mm or 23mm).

3. Check the Mounting Type and Bolt Hole

Seat belt buckles are typically mounted using a bolt or bracket. Check the type and size to make sure your new buckle will install correctly.

What to check:

• Is it mounted via a standard bolt-on base or a looped anchor strap?
• If bolted, note the bolt size and thread type (usually M10 or M12 bolts in UK cars).
• Is it a single-hole or dual-hole mount?

4. Identify the Buckle Type

There are several types of seat belt buckles. Knowing yours helps with selecting the correct replacement.

Common types:

• Push-button buckles (most standard vehicles)
• Lift-latch buckles (older models, vintage cars)

• Switchable or sensor-equipped buckles (with wiring for seatbelt warning systems)

With all these measurements noted down, searching for a replacement buckle on WEBRE should make it easier.

Not only will you be able to find the one you need but also rest assured that all our buckles are ECE R16 certified meeting UK/EU safety standards.

Still Unsure? We’re Here to Help

If you’re unsure about your buckle measurements or need help identifying the right type, our team is happy to assist. You can even take a close-up photo of your current buckle and get in touch with our Customer Service team to help you find the right match.
